Delta DVP Expansion Modules
New
PLC Controllers
Inquire about the product
The expansion modules of the Delta DVP series provide flexible expansion for DVP PLC CPU units. A wide selection of digital and analog I/O, temperature-measurement, RTD, load-cell and positioning modules is available.
Stock status:
On order
Brand:
Delta
Specifications
SeriesDVP
CategoryExpansion modules
TypesDigital I/O, analog I/O, RTD, thermocouple, load cell, positioning
CompatibilityDelta DVP series PLC CPUs
Detailed product information
Delta DVP expansion modules connect to DVP series PLC CPUs and provide flexible expansion of I/O points, analog channels, temperature-measurement functions and special control functions. Digital modules are available with 8 to 32 points and relay, NPN or PNP outputs. Analog modules handle both voltage and current signals. Special modules include RTD, thermocouple, load-cell and single-axis positioning modules.
Models and technical data
| Part number | Digital input | Analogue input | Digital output | Analogue output | Communication | Notes |
|---|---|---|---|---|---|---|
| DVP08SM11N | 8DI | None | None | None | None | Digital input module |
| DVP08SN11R | None | None | 8DO (relay) | None | None | Digital output module |
| DVP08SN11T | None | None | 8DO (NPN) | None | None | Digital output module |
| DVP16SM11N | 16DI | None | None | None | None | Digital input module |

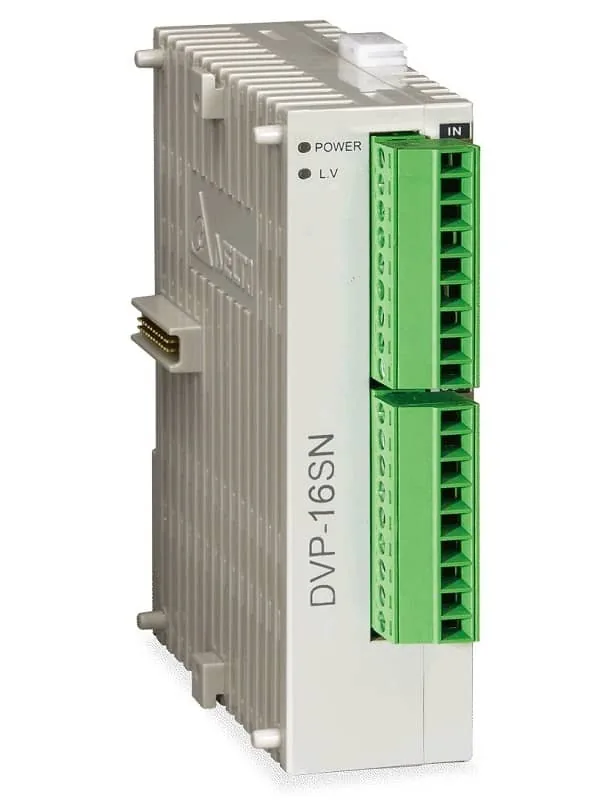

| DVP16SN11T | None | None | 16DO (NPN) | None | None | Digital output module |
| DVP16SN11TS | None | None | 16DO (PNP) | None | None | Digital output module |
| DVP16SP11R | 8DI | None | 8DO (relay) | None | None | Mixed digital I/O module |
| DVP16SP11T | 8DI | None | 8DO (NPN) | None | None | Mixed digital I/O module |
| DVP16SP11TS | 8DI | None | 8DO (PNP) | None | None | Mixed digital I/O module |

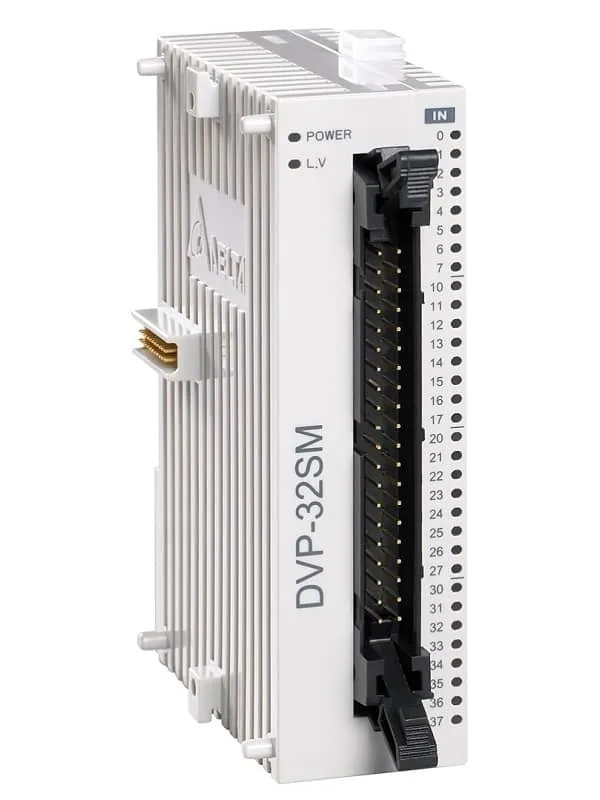

| DVP32SM11N | 32DI | None | None | None | None | High capacity digital input module |
| DVP32SN11TN | None | None | 32DO (NPN) | None | None | High capacity digital output module |
| DVP01PU-S | None | None | None | None | None | 1-axis positioning module |
| DVP02TUN-S | None | None | 4DO | None | None | Temperature control PID module |
| DVP04AD-S2 | None | 4AI | None | None | None | Analogue input module |
| DVP04AD-SL | None | 4AI | None | None | None | Analog input module (V-I), fast connection on the left |
| DVP04DA-S2 | None | None | None | 4AO | None | Analog output module |
| DVP04DA-SL | None | None | None | 4AO | None | Analog output module (V-I), fast connection on the left |
| DVP04PT-S | None | 4RTD | None | None | None | RTD temperature measurement module |
| DVP04TC-S | None | 4 thermocouples | None | None | None | Heat (thermocouple) input module |
| DVP06PT-S | None | 6RTD | None | None | None | 6 channel RTD temperature measurement module |
| DVP06XA-S2 | None | 4AI | None | 2AO | None | Mixed analogue module I/O |
| DVP201LC-SL | None | 1 balance sheet cell | None | None | None | 1-channel load-cell module, left-side connection |
| DVP202LC-SL | None | 2 balance sheet cell | None | None | None | 2-channel load-cell module, left-side connection |
